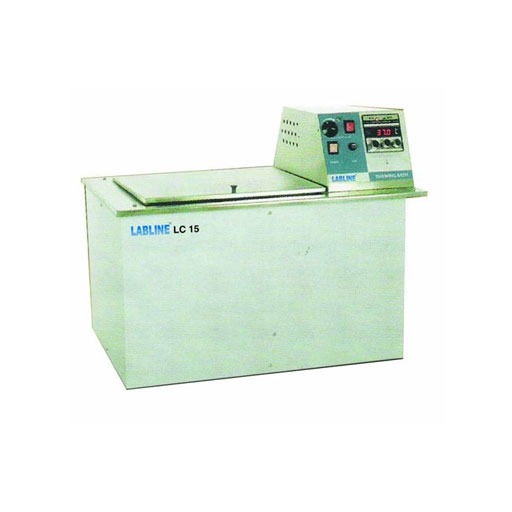

PLASMA THAW BATH

  • Model : LC 15
  • Bag Capacity : 12 Nos per cycle
  • High Capacity Pump : To facilitate flow of (circulation of) water in side the bath Optimum and uniform thawing of plasma, Temperature recording system with disc and display Visual alarm, audible alarm, Trays with individual compartment to ensure that ports of bags may be kept above water level during the procedure Very compact, table top type with top opening
  • Operating Temperature : 37 deg.C to 56 deg.C
  • Input power supply : 230+10%V, 50Hz, 15A single phase AC
  • External Dimension : (WXDXH): 700 mm x 390mm x 380mm
  • Internal Dimension (WXDXH) : 470mm x 290mm x 260mm
  • Tray : Removable type stainless steel trays with Partitions for holding 12 plasma bags Mechanism for thawing : Pumping mechanism by high capacity Pump and of temperature by heater
  • Temperature sensing method : Sealed sensor dipped directly in the water
  • Approximate weight : (Kg) 20
